SVBONY SV705C IMX585 Sensor Astronomy Camera - USB 3.0 High Resolution Planetary Camera for Moon, Saturn & Deep Sky Astrophotography | Perfect for Stargazing, Celestial Photography & Astronomical Observation
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:10 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:21939377
Product Description
The SV705C astronomical camera has an IMX585 chip, 1/1.2” frame, a resolution of 3856 × 2180, an image area of 11.2mm × 6.3mm, and a 12.85mm diagonal. The near-infrared sensitivity is significantly improved, and it has a very high signal-to-noise ratio, which can improve the user experience. Previous page Operating Temperature: 14℉~122℉ Storage Temperature: -4℉~140℉ Next page 1 IMX585 SENSOR 2 DDR3 128M BUFFER 3 QE 90% 4 F9198 Series Comparison USB3.0 Date Interface USB 3.0 data transmission interface to ensure stable data transmission. It is suitable for fast and efficient planetary, lunar imaging. ST4 Guide Port ST4 guide port can connect to the Auto Guider interface of the equatorial mount and use the PHD2 guide software to control the automatic guide of the equatorial mount. Previous page Next page 1 ROI FUNCTION 2 BIN FUNCTION 3 Comparison Previous page Next page 1 FOR EAA PHOTOGRAPHER 2 C CLEDS OR CSCS LENS Please update to the latest version when using Sharpcap. Specifications Sensor IMX585 Total Pixels 8.3 Mega Pixels Diagonal 12.85mm Max Resolution 3856×2180 Pixel Size 2.9μm X 2.9μm Chip Size 11.2mm×6.3mm Frame Rate 45FPS Shutter Rolling shutter Exposure Range 32μs-2000s Readout Noise 6.5e~0.7e QE Peak ≈90% Full Well 38k e ADC 12 bit BIN 1X1 2X2 Digital Noise Reduction HCG Compatible Systems Windows , Linux OS Raspberry Pi，Mac os, Chrome os
Product Features

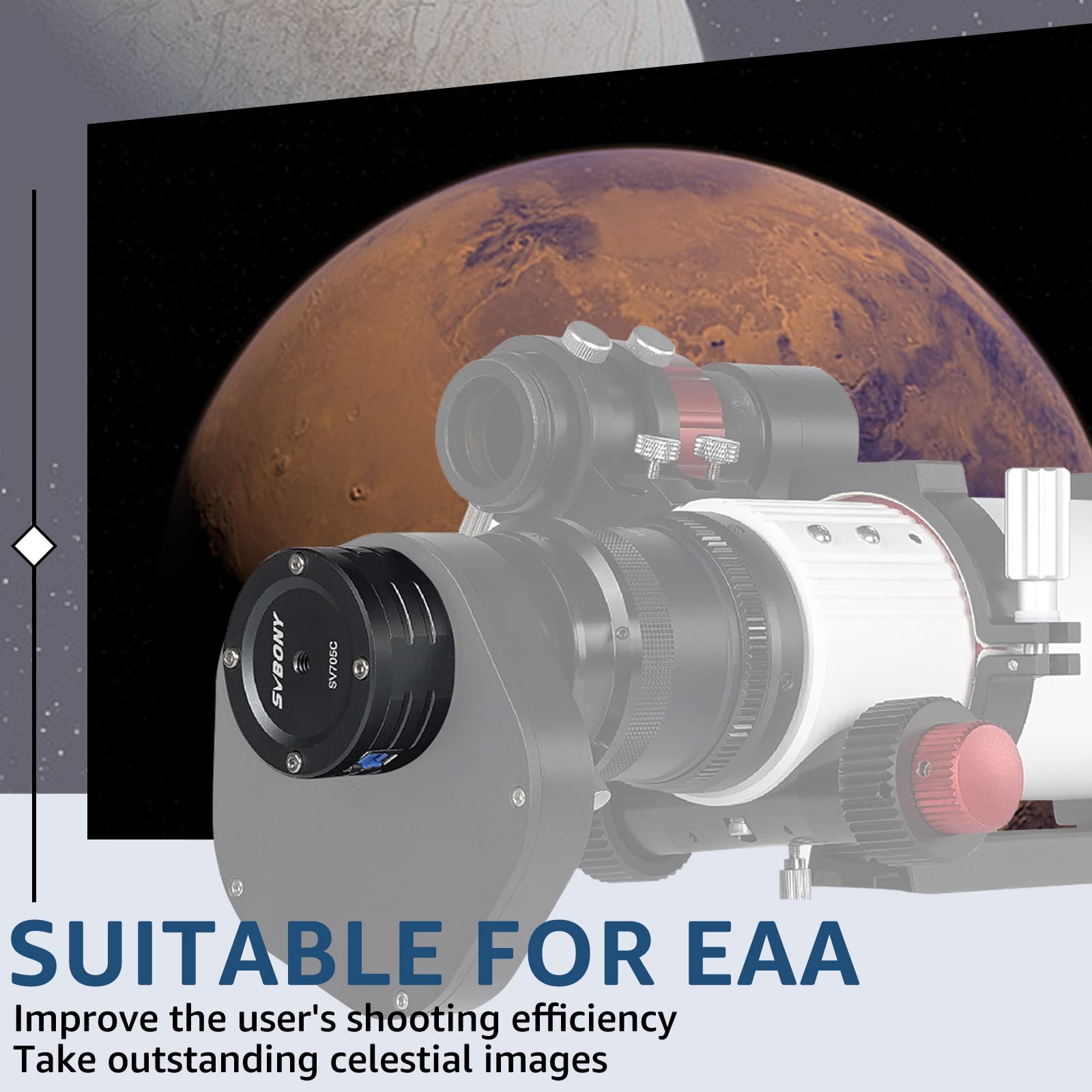

SV705C telescope camera is not only for planetary imaging; but also very powerful for EAA and lucky imaging; entry-level deep sky shooting; suitable for EAA enthusiast crowd
Compared with IMX485 sensor; IMX585 has 3 times the number of full well charges; and has a very high signal-to-noise ratio; which can improve users' shooting efficiency and capture outstanding celestial images
SV705C planetary camera adopts 1/1.2 inches frame; the maximum resolution is 3856×2180; the image area is 11.2mm×6.3mm; the diagonal is 12.85mm; obtain rich details of celestial bodies
The near-infrared sensitivity is 1.7 times that of the previous generation; which can greatly improve the near-infrared shooting efficiency and capture more details of celestial objects under the same exposure time
Dual-gain HDR; which still retains a very high dynamic range at high gain; about 8 times that of the previous generation; which can greatly reduce the read noise
Based on the back-illuminated sensor and advanced pixel technology; the SV705C's full well charge can reach 38ke; the peak QE of SV705C can reach about 90%; you will get the better image quality

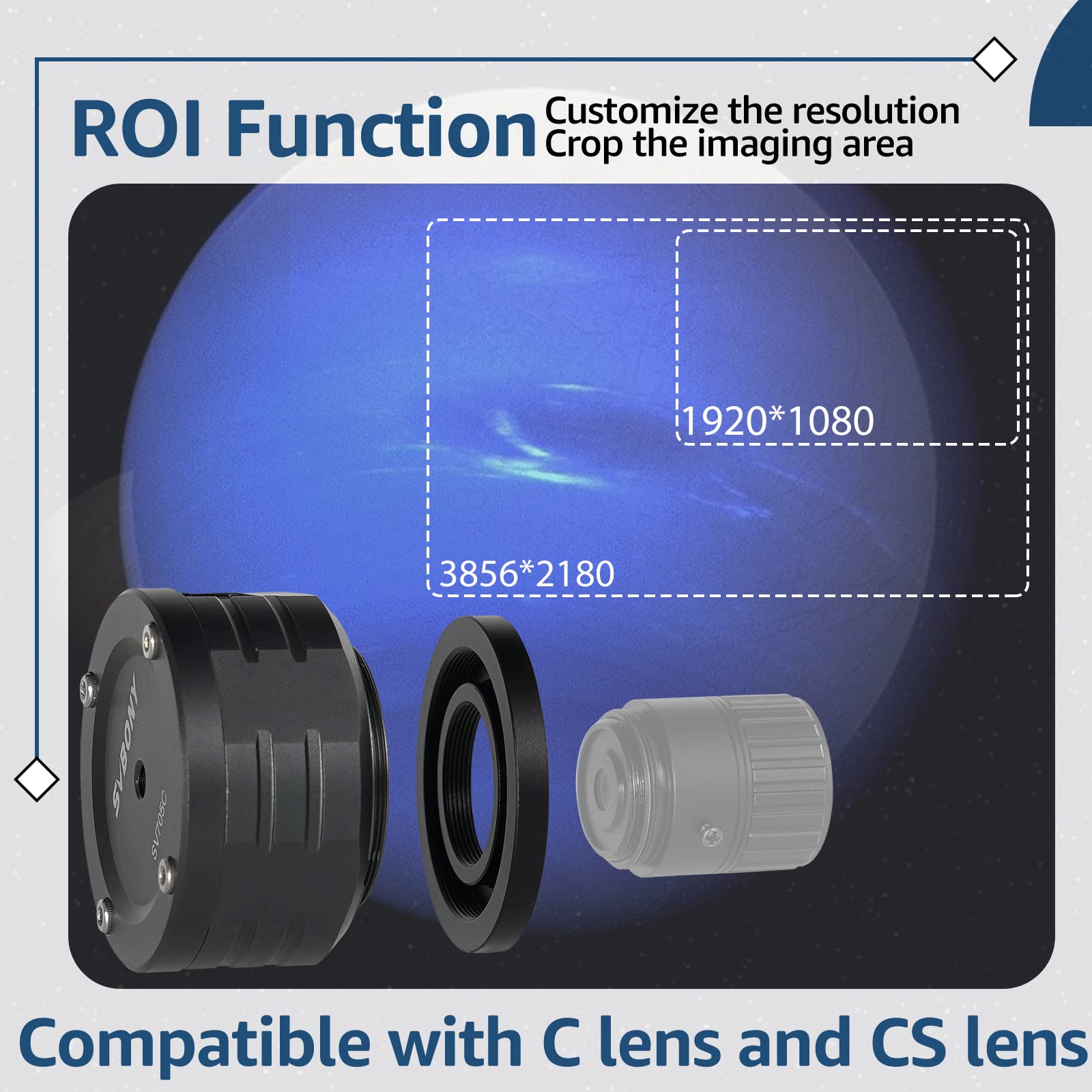

The front end of the camera is a CS port; and is also equipped with a C-CS adapter ring; which can be used with C-mount lenses and CS-mount lenses to make time-lapse video; with a fisheye wide-angle lens; it can be used for all-day surveillance
